How to Install Matrix Synapse Chat on Ubuntu 18.04 LTS
On this page
- Prerequisites
- What we will do?
- Step 1 - Update and Upgrade System
- Step 2 - Install Matrix Synapse
- Step 3 - Configure Matrix Synapse
- Step 4 - Generate SSL Letsencrypt Certificates
- Step 5 - Install and Configure Nginx as a Reverse Proxy
- Step 6 - Setup UFW Firewall
- Step 7 - Create a New Matrix User
- Step 8 - Testing
- Reference
Matrix is a new ecosystem for decentralized communication in real time for open federated instant messaging and VoIP services. It provides RESTful HTTP JSON APIs for building distributed and federated chat servers with no single point of control and failure and provides all references for the APIs.
Synapse is an implementation of the matrix home server that's created by matrix team and written in Python/Twisted. With this software, we can implement the matrix way for decentralized communication, we can create our own home server and store all user personal info, chat history, create the room for own use, etc.
In this tutorial, we will show you step-by-step how to install and configure Matrix Synapse on Ubuntu 18.04. We will configure Matrix Synapse on the local IP address, and configure the Nginx web server as a reverse proxy for it, and implement the HTTPS connection between clients and the front-end Nginx web server.
Prerequisites
- Ubuntu 18.04
- Root privileges
- Matrix Domain name or sub-domain - matrix.hakase-labs.io
What we will do?
- Update and Upgrade the Ubuntu 18.04 System
- Install Matrix Synapse
- Configure Matrix Synapse
- Generate SSL Letsencrypt
- Install and Configure Nginx as a Reverse proxy for Matrix Synapse
- Setup UFW Firewall
- Setup New Matrix User
- Testing
Step 1 - Update and Upgrade System
Login to your Ubuntu server, update the repository and upgrade all packages using the apt command below.
sudo apt update
sudo apt upgrade
And all ubuntu packages have been upgraded.
Step 2 - Install Matrix Synapse
In this step, we will install the matrix synapse software using the Debian packages from the official matrix repository.

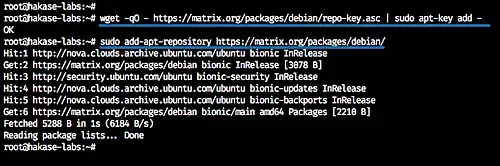

Add the matrix key and repository by running all commands below.
wget -qO - https://matrix.org/packages/debian/repo-key.asc | sudo apt-key add -
sudo add-apt-repository https://matrix.org/packages/debian/
The command will automatically update the repository.
Now install matrix synapse using the apt command as below.
sudo apt install matrix-synapse -y

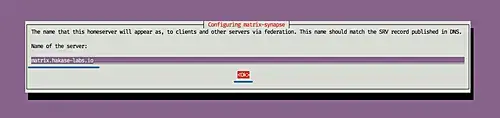

During the installation, it will ask you about the matrix server name - type the matrix domain name 'matrix.hakase-labs.io'.

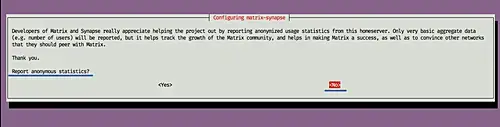

And for the anonymous data report, choose 'No'.
When the matrix synapse installation is complete, start the service and enable it to launch everytime at system boot.
sudo systemctl start matrix-synapse
sudo systemctl enable matrix-synapse

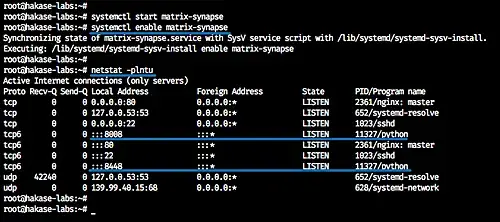

The matrix synapse is now up and running using the default configuration on port '8008' and '8448'. Check using netstat command.
netstat -plntu
After the matrix synapse installation, we will configure it to run under the local IP address, disable matrix synapse registration, and enable the registration-shared-secret.
Before editing the home server configuration, we need to generate the shared secret key.

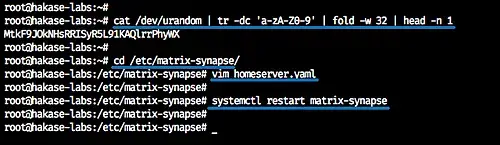

Run the command below.cat /dev/urandom | tr -dc 'a-zA-Z0-9' | fold -w 32 | head -n 1
And you will get the generated key. Copy the result key.
Now we need to edit the home server configuration file 'homeserver.yaml' on the '/etc/matrix-synapse/' directory. Change the current directory to '/etc/matrix-synapse' and edit the configuration file using
vim.
cd /etc/matrix-synapse/
vim homeserver.yaml

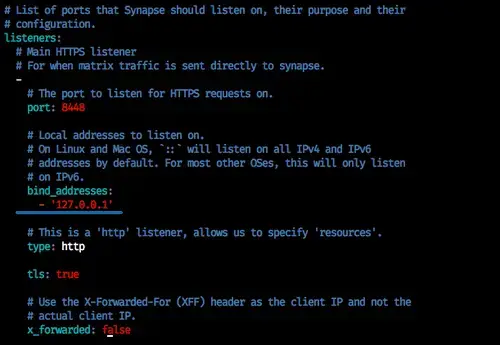

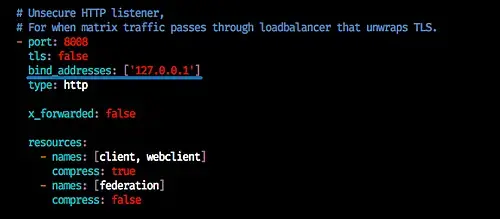

Change the HTTP and HTTPS Listener port '8008' and '8448' to the local IP address '127.0.0.1'.
port: 8448
bind_addresses:
- '127.0.0.1'
- port: 8008
bind_addresses: ['127.0.0.1']
Disable the matrix synapse registration, uncomment the 'registration_shared_secret' configuration and paste the secret key generated.
enable_registration: False
registration_shared_secret: "MtkF9JOkNHsRRISyR5L91KAQlrrPhyWX"
Save and exit.
Note:
registration_shared_secret: If set allows registration by anyone who also has the shared secret, even if registration is disabled.
Now restart the matrix synapse services.
sudo systemctl restart matrix-synapse

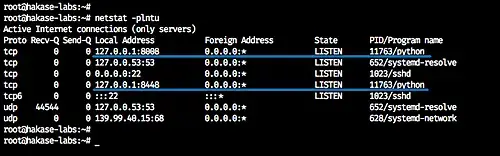

Check the homeserver service using the command below.
netstat -plntu
You will get the matrix synapse service is now on the local IP address.
And we have completed the matrix synapse installation and configuration.
Step 4 - Generate SSL Letsencrypt Certificates
In this tutorial, we will enable HTTPS for the Nginx reverse proxy, and we will generate the SSL certificate files from Letsencrypt.
Install the letsencrypt tool using the apt command below.
sudo apt install letsencrypt -y
The Letsencrypt tool is installed on the system, now generate the SSL certificate files for the matrix domain name 'matrix.hakase-labs.io' using the certbot command as shown below.
certbot certonly --rsa-key-size 2048 --standalone --agree-tos --no-eff-email --email hakaselabs@gmail.com -d matrix.hakase-labs.io
The Letsencrypt tool will generate SSL certificate files by running the 'standalone' temporary web server for verification.

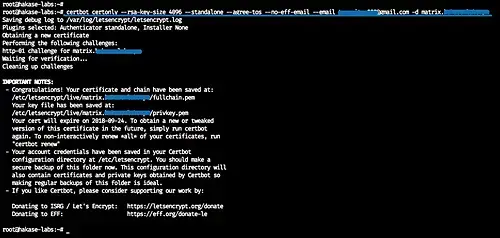

And when it's complete, you will get the result as shown below.
SSL certificate files for the matrix synapse domain name 'matrix.hakase-labs.io' is generated inside the '/etc/letsencrypt/live/' directory.
In this step, we will install the Nginx web server and configure it as a reverse proxy for home server that is running on the port '8008'.
Install the Nginx web server using the apt command below.
sudo apt install nginx -y
After the installation is complete, start the service and enable it to launch everytime at system boot
sudo systemctl start nginx
sudo systemctl enable nginx
Next, we will create a new virtual host configuration for the matrix domain name 'matrix.hakase-labs.io'.
Go to the '/etc/nginx' configuration directory and create a new virtual host file 'matrix'.
cd /etc/nginx/
vim sites-available/matrix
Paste the following configuration there.
server {
listen 80;
server_name matrix.hakase-labs.io;
return 301 https://$server_name$request_uri;
}
server {
listen 443 ssl;
listen [::]:443 ssl;
server_name matrix.hakase-labs.io;
ssl_certificate /etc/letsencrypt/live/matrix.hakase-labs.io/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/matrix.hakase-labs.io/privkey.pem;
# If you don't wanna serve a site, comment this out
root /var/www/html;
index index.html index.htm;
location /_matrix {
proxy_pass http://127.0.0.1:8008;
proxy_set_header X-Forwarded-For $remote_addr;
}
}
Save and exit.

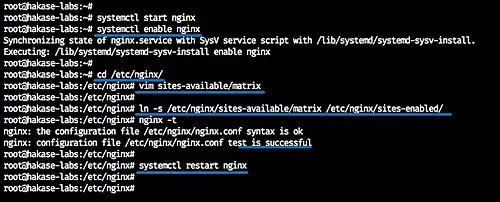

Activate the virtual host file and test the configuration.
ln -s /etc/nginx/sites-available/matrix /etc/nginx/sites-enabled/
nginx -t
Make sure there is no error, then restart the Nginx services.
sudo systemctl restart nginx
Nginx installation and configuration as a reverse proxy for the Matrix Synapse homeserver has been completed.
Step 6 - Setup UFW Firewall
In this tutorial, we will only open three ports for our services. We will only allow SSH, HTTP, and HTTPS connection on the UFW firewall configuration.
Add the SSH, HTTP, and HTTPS services to the UFW firewall configuration by running the command below.
ufw allow ssh
ufw allow http
ufw allow https

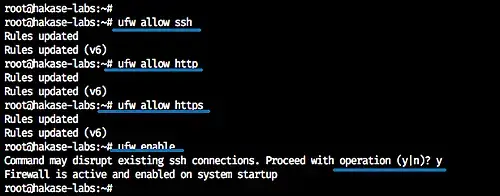

Now enable the UFW firewall service and then check the status.
ufw enable
ufw status

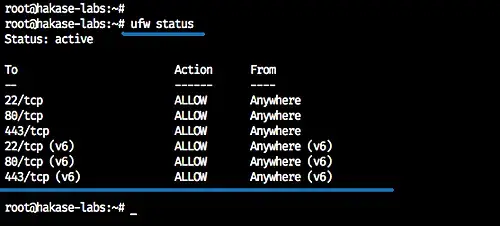

And you will get the result as shown below.
And we've completed the UFW firewall configuration.
Step 7 - Create a New Matrix User
At this stage, the matrix synapse homeserver installation and configuration is complete. And in this step, we will show you how to add a new matrix user from the command line server.
To create a new matrix user, run the command below.
register_new_matrix_user -c /etc/matrix-synapse/homeserver.yaml https://127.0.0.1:8448
Now you need to input the user name, password, and decide whether the user will have the admin privileges or not.

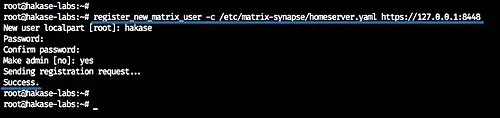

Below is the result on my system.
And we have created a new matrix user named 'hakase' with admin privilege.
Step 8 - Testing
Download the Riot desktop application for your operating system and install it.

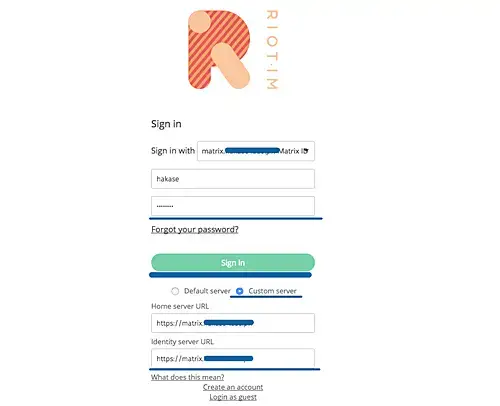

Open the Riot software and you will get the Matrix login page as below.
Type the matrix username and password, then choose the 'Custom server' option and type the custom domain name 'matrix.hakase-labs.io'.
Click the 'Sign In' button.

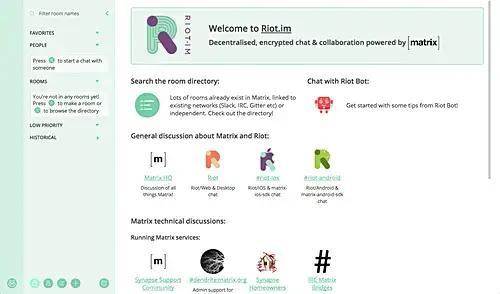

And now you will get the Riot Dashboard.
The Matrix Synapse home server is up and running under the Nginx reverse proxy HTTPS connection, and the 'hakase' user is now logged in to the matrix homeserver using the Riot application desktop.

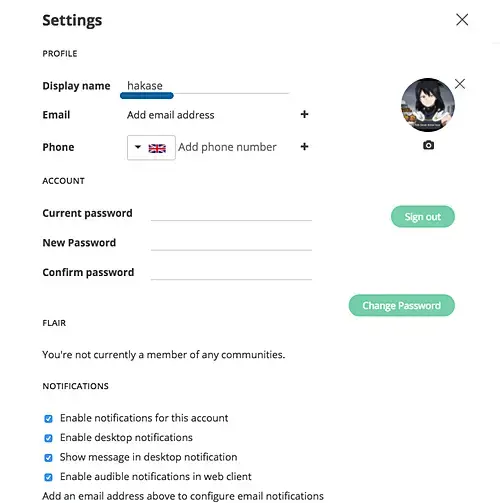

Matrix user configuration.

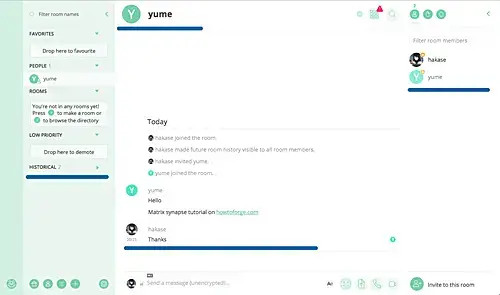

Matrix chat user as a Group.
